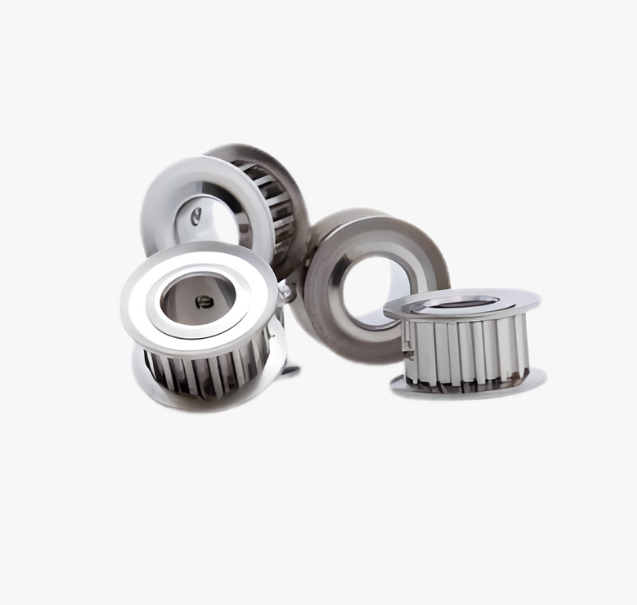

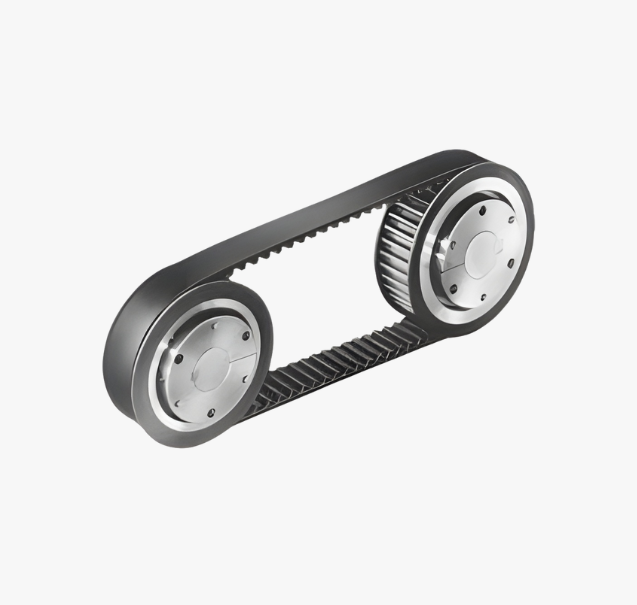

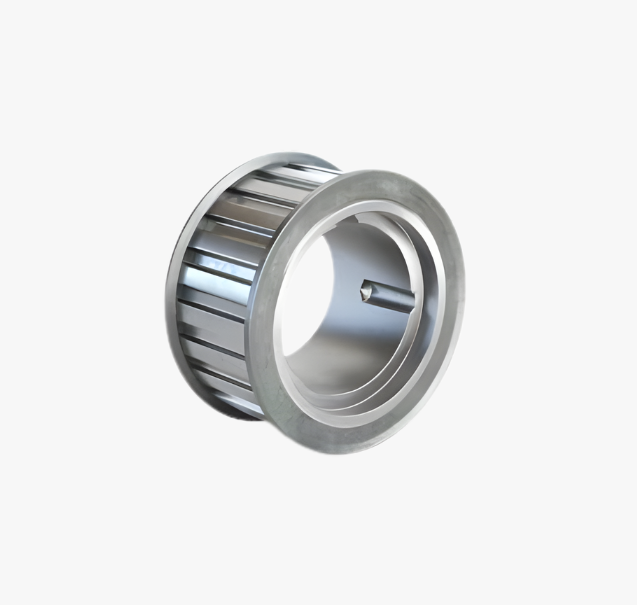

At SSMC Belts Company, Our timing pulleys offer several advantages over conventional pulleys and chain drives, delivering smoother and more reliable performance. Designed by skilled professionals using high-quality materials and advanced technology, each pulley is engineered for precision and efficiency. We ensure strict quality control throughout the manufacturing process to guarantee flawless operation for end users. In addition to using superior materials, we apply protective coatings that prevent rust and long-term degradation, ensuring durability, extended service life, and consistent performance in demanding industrial environments.
SSMC Manufacturing Company, based in Panipat, India, We are a trusted timing pulley exporter in India, offering a wide range of precisely engineered pulleys designed for smooth engagement with metal belt teeth and lugs. Backed by skilled engineers, we manufacture and supply high-quality timing pulleys available in various specifications and customizable to customer requirements. Each pulley is rigorously tested for reliability and performance, ensuring timely delivery at competitive prices.
| Type | bw | hg | y+1.5° | rb | rt | 2k |
|---|---|---|---|---|---|---|
| MXL | 0.84 ± 0.05 | 0.69 | 20 | 0.35 | 0.13 | 0.508 |
| XXL | 1.14 ± 0.05 | 0.84 | 25 | 0.35 | 0.30 | 0.508 |
| XL | 1.32 ± 0.05 | 1.65 | 25 | 0.41 | 0.64 | 0.508 |
| L | 3.05 ± 0.01 | 2.67 | 20 | 1.19 | 1.17 | 0.762 |
| H | 4.19 ± 0.13 | 3.05 | 20 | 1.60 | 1.6 | 1.372 |
| XH | 7.90 ± 0.15 | 7.14 | 20 | 1.98 | 2.39 | 2.794 |
| XXH | 12.17 ± 0.18 | 10.31 | 20 | 3.96 | 3.18 | 3.048 |
| Type | Pitch | hg Tooth height | Root circle radius | Groove width | Top circle radius | Angle |
|---|---|---|---|---|---|---|
| 3M | 3 | 1.28 | 0.91 | 1.90 | 0.3 | -14° |
| SM | 5 | 2.16 | 1.56 | 3.25 | 0.48 | -14° |
| 8M | 8 | 3.54 | 2.57 | 5.35 | 0.8 | -14° |
| 14 | 14 | 6.20 | 4.65 | 9.80 | 1.4 | -14° |
| Type | SE br<20 | N br<20 | SE hg<20 | N hg<20 | y Grade | rt | rb | 2k | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T2.5 | 1.75 | +0.050 | 1.83 | +0.050 | 0.75 | +0.050 | 1 | 25 | 0.2 | 0.3 | +0.050 | 0.6 |
| TS | 2.96 | +0.050 | 3.32 | +0.050 | 1.25 | +0.050 | 1.95 | 25 | 0.4 | 0.6 | +0.050 | 0.85 |
| T10 | 6.02 | +0.10 | 6.57 | +0.10 | 2.6 | +0.10 | 3.4 | 25 | 0.6 | 0.8 | +0.10 | 1.85 |
| T20 | 11.65 | +0.150 | 12.6 | +0.150 | 5.2 | +0.130 | 6 | 25 | 0.8 | 1.2 | +0.10 | 2.83 |
| Type | Pitch | Tooth height | Root circle radius | Groove width | 2k |
|---|---|---|---|---|---|
| S2M | 2 | 0.76 | 1.325 | 1.30 | 0.508 |
| S3M | 3 | 1.11 | 1.975 | 1.95 | 0.762 |
| S4.5M | 4.5 | 1.59 | 2.98 | 2.93 | 0.762 |
| S5M | 5 | 1.89 | 3.275 | 3.25 | 0.96 |
| S8M | 8 | 2.83 | 5.30 | 5.20 | 1.372 |
| S14M | 14 | 4.95 | 9.28 | 9.10 | 2.794 |
